サイズ: 172mm(L)*120mm(W)*66mm(H)
入力電圧: DC 72V
出力電圧: DC 13.5V
出力電流: 25A
作動電圧:56V-97V
作動温度: -10C - +40C
＊期間限定値下げいたしました＊
この商品は受注生産品になります
納期：ご注文後約2週間から5週間
発送は海外工場からの直送となります。

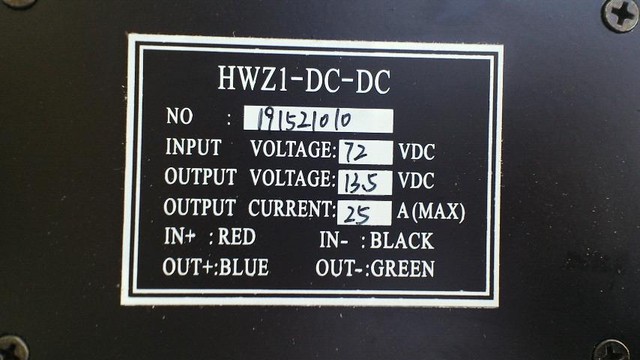

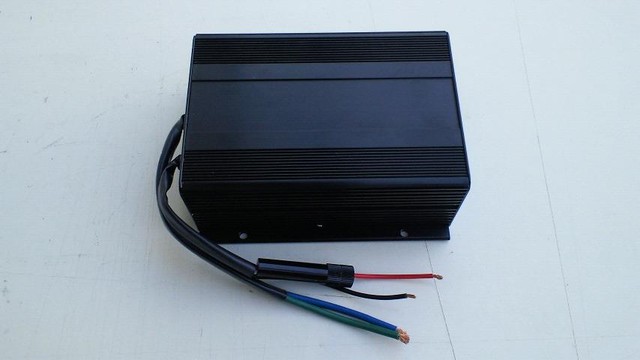

Parameters:
Dimensions: 172mm(L)*120mm(W)*66mm(H)
Input voltage: DC 72V
Output voltage: DC 13.5V
Operating voltage range:56V-97V
Output current: 25A
Operating temperature: -10C - +40C
Function :
Over current limited
Output short protection
Battery reversed connect protection
Over temperature protection
Incomplete Waterproof and anti-shock
Isolate between input and output
Advantage: safety and little disturbance; the output negative can be
directed connected with car body , even if the whole supply
system of the car is aging or short accidently, it can not cause
the accident.
